Here’s a simple mod that adds a blend pot to the Ugly Face.

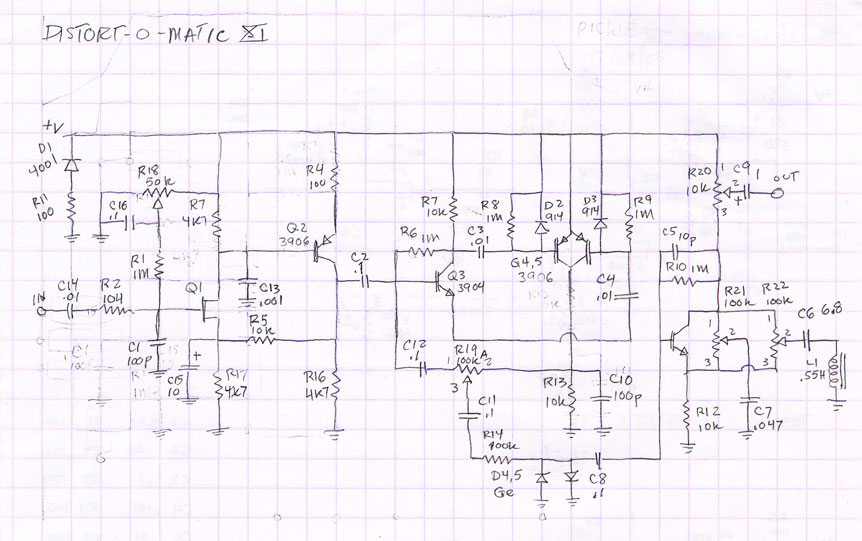

This is an interesting distortion effect with an octave and wah like tone control. I redrew this schem from an issues of Stompboxology.

Here’s another unique design by Tim Escobedo.

This is Jack Orman‘s Minibooster.

This is Tim Escobedo‘s FET Driver.

This is another fine little Distortion by Tim Escobedo. I think this sounds pretty good. The sound can go from mildly distortion/overdrive to over the top almost metal. It can also get some splatty fuzz tones and a soft attack.

This is Tim Escobedo‘s Push Me Pull You. It’s an octave up with an interesting design. Using an NPN PNP pair.

Another very original design by Tim Escobedo. This an octave up with a sitar like sound.

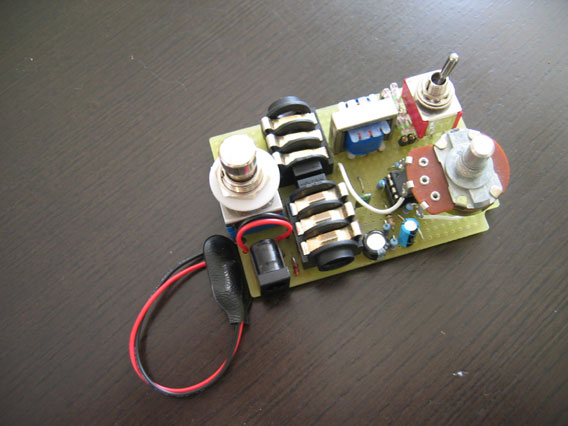

This is design by John Hollis. It’s a booster that uses an inductor to generate a massive boost. It also has a switchable octave up. The boost sound is very warm and clear. The octave has a nice tone also.

There is a drop in volume between the octave and the boost, since the octave has to push the signal through a diode ring. This made it impractical to make the octave switchable with a foot switch. Hence the toggle.

I got the 3DPT toggle switches from FutureLec for a very reasonable price. I had to wait weeks for them. FutureLec is slow as mollasses, I would not recommend them if you are in a hurry.

This is Way Huge Swollen pickle clone I made. This is basically a Big Muff with using a 14 pin DIP that contains 4 transistors. The tone control also has a pronounced mid scoop compared to the original Big Muff.

I etched this design on the box. The design is based on flames in Tibetan art. I named the box the Shiva Sonic. I figure as the god of destruction and rebirth, Shiva was an appropriate deity for the sound of the Big Muff.

This is a layout for the Big Muff that would fit in a B sized box. It is set up to use a 14 pin DIP since I used a quad transistor array. The pins on this chip are arranged such that you you could use this layout with regular transistors inserted into a 14 pin DIP socket. If you look carefully you can see that I’ve marked the pins E, B and C
