What am I missing?
January 22nd, 2010

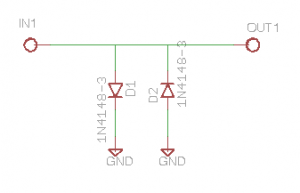

Assume there’s your favorite booster at the input, what is D2 doing? This is the most common clipping arrangement that I have seen. It seems that D2 does nothing.
If the boost at the input is running off 9V then the you should have a single that is centered on 4.5V going past the two diodes. D1 clips the signal when it is above 0.7V. D2 on the other hand should not allow a signal to pass until it gets above the reverse bias voltage.
Feel free to let me know what I missing if anyone has some insight into this.
Entry Filed under: Uncategorized
1 Comment
Add your own1. dcx | February 22nd, 2010 at 4:16 pm
Your thinking of the ground at the anode of D2 as dc ground and not as an ac current path. I think.
