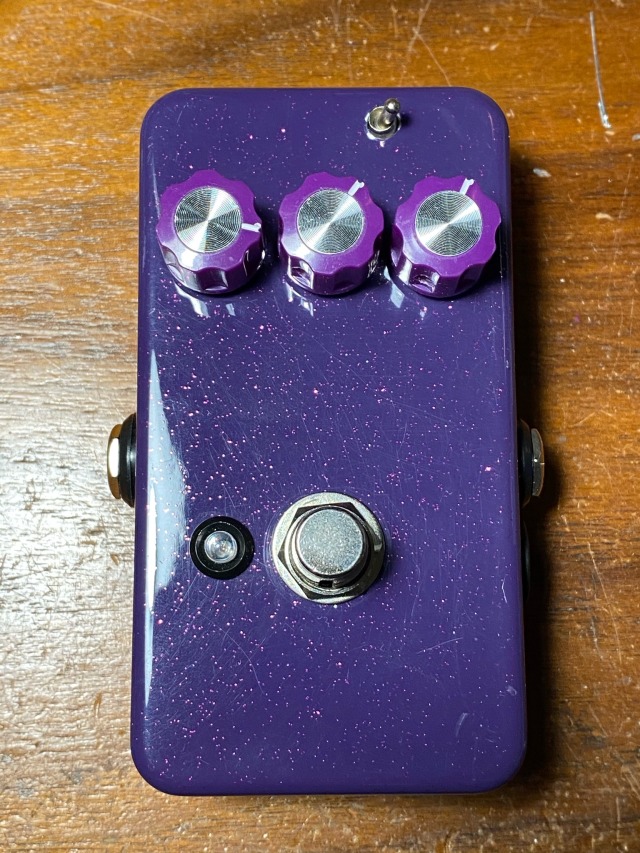

Here’s a purple sparkle op-amp Big Muff Clone. This fine specimen is for sale on my Reverb shop. If you’re in familiar, the Big Muff circuit is built around 4 transistors for all of the different versions except for one version made in 1978. This version has am similar but unique sound and was built around completely different circuit using op-amps and no transistors. Read more about the op-amp Big Muff here: Kit Rae’s history of the Big Muff.
Box of Rock bootleg in process. Milling the box on the Bantamtools Othermill.
Big Muff Army. Six mini big muffs each a different version.
Mini big muff number 6 Sustain Punch Creamy Dreamer clone.
Mini Big Muff Skreddy Mayo style.

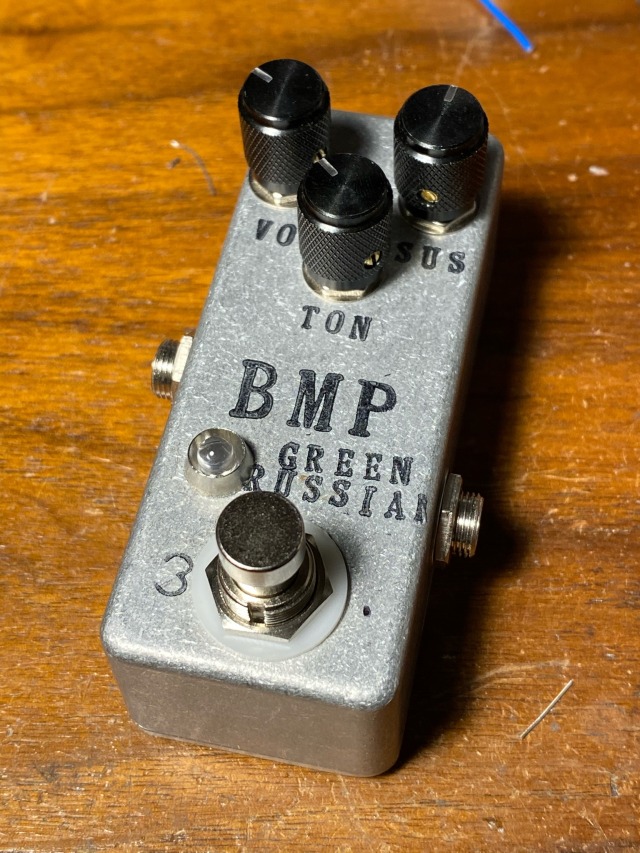

Mini big muff #3 is a Green Russian clone.
What’s the difference between all those different versions of the big muff? I decided to find out! This is a thoroughly unscientific experiment. I got 7 mini big muff boards from mad bean pedals. The build docs include instructions for building each of 6 different versions.
Why 7 boards? I usually screw something up it’s always good to have a spare!
So far the Triangle is done. The boxes are made and the other boards are in process.

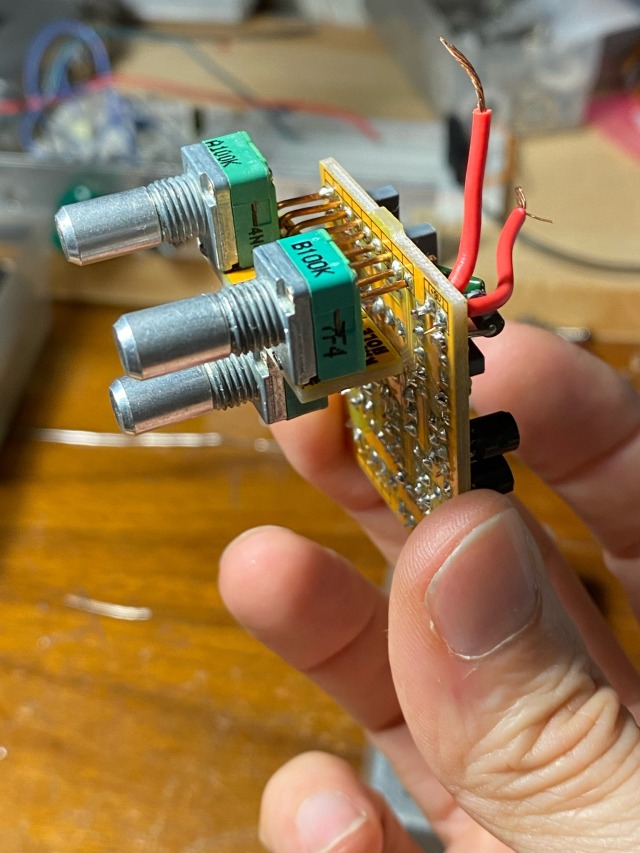

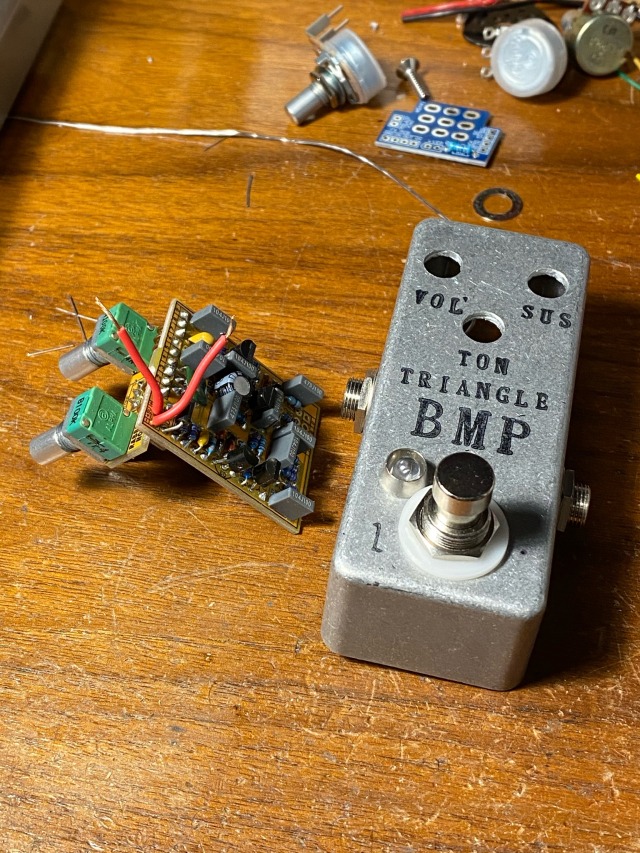

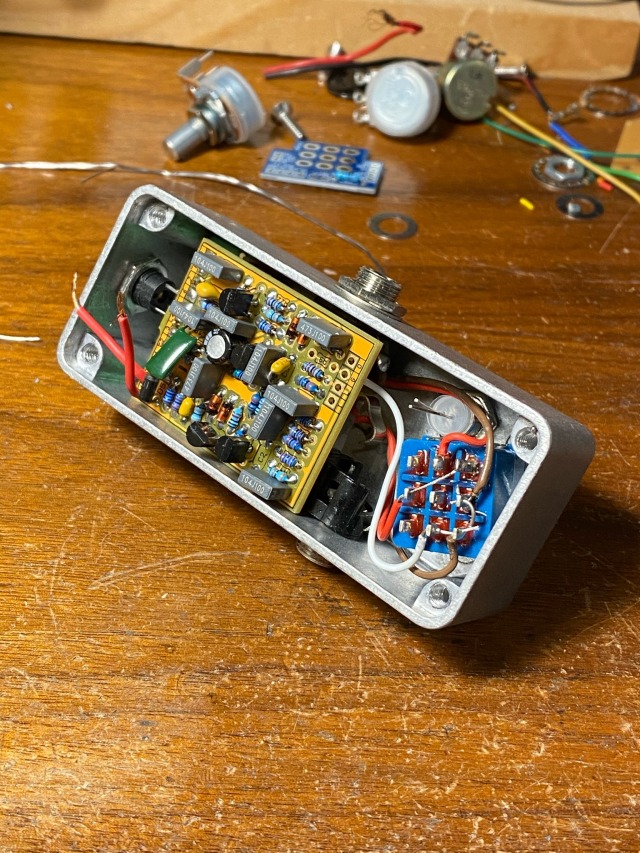

Building a mini big muff. This was built to mad beans Triangle spec.
John Hollis Titan Boost/octave. It’s all built on a single pcb that includes all of the default wiring for the switches and jacks. The rest of the pcb is perf board.
