Boss DRV-1981

This is a clone of the 1981 Inventions DRV rehoused in a Boss DS-1 enclosure. I used the PedalPCB Informant PCB and the MadBean Softie for this project.

The “Boss” DRV-1981

Why?

Good question! I suppose I saw the ridiculous prices people were paying for the Boss Tone Benders that had come out recently and thought I could just make my own. While I was exploring the idea it seemed it was easiest to three knob Boss enclosures. The cheapest pedals seemed to be the DS-1, SD-1, and the BD-1. So building a three knob was the best option. There are many three knob pedals out there. Big Muff, Tube Screamer etc.

I got a little sidetracked and built a Big Muff in a DS-1 enclosure first, see my post here. The second build was this 1981 DRV. I have a board for a three knob Tone Bender and am planning to work on that next.

The process The process was pretty straight forward.

The Boss enclosure is pretty roomy. Figure you can fit anything that might fit 125B sized box into a Boss enclosure. The donor pedal comes with LED, Jacks, much of the wiring already. No need to drill or install these things.

One thing that needs some work is the power jack. The power jack is mounted to the original DS-1 PCB in my build there was no place to mount this. To solve this I used one of those standard DC jacks with a nut. I needed to ream the enclosure to allow it to fit. I added a couple spare washers so the jack didn’t extend too far out of the enclosure.

Switching

Switching is an area that needed some thought. Boss uses an electronic switching system. The system uses a couple JFET transistors to route the signal either through the effect or from the input to the output. Another part of the circuit turns this off or on. There is also buffer.

A side effect of this system is that your signal is always passing through some electronic components unlike true bypass where the signal is essentially traveling through a wire from the input to the output when the effect is bypassed. I’ve never heard any complaints about The Boss bypass. Another potential problem is the signal is lost when power is lost, even when the effect is bypassed.

I used the MadBean Softie which uses a micro controller and an electronic relay. The relay is an electromechanical switch. It’s a DPDT switch that is activated by an electronic signal. This offers a couple advantages. First, it works with the existing switch in the Boss enclosure. Second, when in bypass it acts as true bypass, the signal is essentially traveling through a wire from input to output when in bypass. Third, if power is lost the relay switches to its default state which bypasses the effect. Last, the relay has a failure rate of 100k cycles so it should outlast a mechanical 3PDT switch, which typically has a failure rate of 30k to 50k cycles.

It isn’t all upside. The cost of the Softie PCB was $4 and you’d need an SPDT monetary switch which is another $2.50. That’s $6.50 compared to $2.50 for one of those standard blue 3PDT switches. In this case the Boss enclosure came witch an SPST.

I thought the Softie worked well. Madbean makes three versions of this board for different sized enclosures. I chose the smallest version that was meant to fit 1590B enclosures. I think I could choose a one of the other boards for the Boss enclosure. The reason the board I chose has a small footprint but mounts parts on both sides of the board making it taller than other boards, which makes it a tighter fit than it would appear.

The Informant/DRV needed three A100K pots. The DS-1 has two B100k and a B20K pot. I could have tried the B100K pots. Since I needed to replace on of the pots I replaced them all.

I used some of those 9- degree PCB mounted pots, two 16mm and one 9mm. I cut a piece of strip board and mounted the post to this. Then ran the wiring from the Strip board to the PCB.

I color coded the wires by the PIN number of the pots to make it easy to get them matched up to the correct holes on the PCB. I just did it alphabetical to make it easy to remember: Brown, Gray, Orange. Notice the center pot is backwards,

Cost

The cost of this project was higher than a typical pedal but not as bad as i was expecting. The cost of the donor DS-1 was the biggest expense. The DS-1 was $40 and it replaces about $10 of other parts. So this was roughly about $30 more than your typical pedal build.

Item Cost
Informant PCB $8
Softie PCB $4
Used DS-1 $40
TC1044 $2
Other parts $6
Total (estimate) $60
DRV-1981 costs estimated

The total cost was about $60 which was not that bad, or at least than I thought it might be when I started. The pedal is pretty solid and works well.

What’s it sound like?

Hopefully like the 1981 Inventions pedal. I haven’t tried one of the originals but this sounds similar to the demos I’ve seen on YouTube. Its a really driven sound with a tight low end. It has a very 80s sound.

The drive control starts at distorted and goes quickly to high gain. I find it sounds best to turn up the Cut control as you increase the gain to “shave” some of the “hair” off as gain increases.

For myself I like the lower range of the Drive control. Everything past 25% (9 o’clock) sounds very similar. I’d like to play with Drive and gain in the future. This might be replacing the Drive pot with a 50k pot, or possibly changing some of the other components to get a more useful feel for this control.

Parentheses Fuzz #4

This is a clone of the Earth Quaker Devices Life. Which is a great octave fuzz.

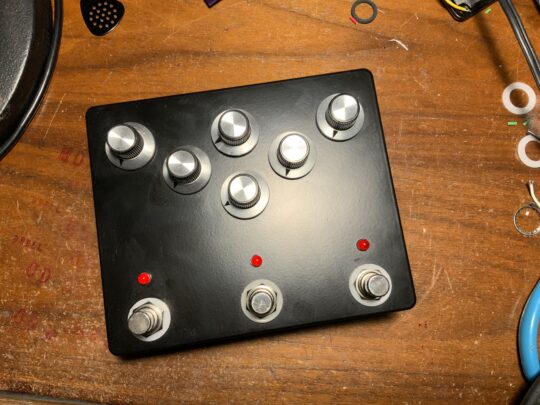

The foot switches left to right are: Boost, Octave, Bypass,

The knobs left to right: Boost, Distortion, Filter, Volume, Octave. The center top knob is a four position switch that chooses the clipping type.

The circuit uses an octave similar to the Green Ringer info a ProCo Rat like distortion circuit built around a single op-amp followed by clipping diodes to ground. The center top knob chooses one of four clipping diode arrangements.

Check out the build Docs here.

Zeke Bass Distortion – OSH Park

This Zeke Bass Distortion is a clone of the D*A*M Ezekiel 25:17 Bass distortion. The PCB came from OSH Park. This worked out well. The board is pretty big so soldering parts is easy. The rotary switch and pots are all mounted on the board, which makes assembly easy, this is a good PCB.

There was no documentation on OSH Park for this, so I reverse engineered the board to match the parts in the schematic. Here is the schematic I used with part numbers that match the PCB.

zeke

Overall the board turned out pretty good. I used a socket for the dual op-amp. I threw a random 1458 in that was sitting in a pile of parts on my bench, and it fired up first test. This is supposed to use a JRC 4558. I think I have a couple of these squirrelled away, I’ll dig them out before I box things up. I might try some other op-amps also.

There are three sets of diodes. D2-4 are Ge, D5-6 are Si, and D7-8 are LED. I used some 1N34 for the Ge, and 1n914 for the Si, and random 3mm LEDs from the parts bin.

With 3P4T switch the circuit is only using one pole. I only soldered the pins used by that pole. This way if I made a mistake, it’s been known to happen, I had fewer pins to de-solder. With these switches there is a small ring with a tab under the nut. Be sure to set this for four positions.

To mount the pots, I would suggest making a box first, mounting everything in the box. This will position the pots at the correct height above the board compared to the switch. Then solder from the top of the board. I made some holes in a piece of cardboard, and mounted everything in that before soldering, since I didn’t have a box drilled yet.

I put everything on the test rig, and it fired up first! Good for me, and thanks to bmossma at OSH Park. It’s always inspiring when things work on the first attempt. The sound was pretty good, it didn’t sound like much with guitar, with bass, the effect started to make sense. I tested with my baritone guitar and it seemed to sound pretty good with that also. Definitely more of an overdrive, distortion, than a fuzz to my ears.




Omnidrive

Here’s a project that I built up some years ago. This never found it’s way into a box. I dug it out and decided to try and box it up. Difficult with the number of switches and knobs. I think I have a viable plan to shoehorn it into a BB sized. box.

This is a pretty interesting distortion box. It’s sort of a Tube Screamer, Rat, Distortion +, with an Octave up. When I finish it up it should be all of those things in one box.

This was built using the layout generously provided by R.G. Keen of GEOFEX fame.

Omnidrive
