Zeke Bass distortion

Completed clone of the Ezekiel 25:17 Bass Distortion by D*A*M. I built this with PCBs from OSH Park, see my previous post.



Zeke Bass Distortion – OSH Park

This Zeke Bass Distortion is a clone of the D*A*M Ezekiel 25:17 Bass distortion. The PCB came from OSH Park. This worked out well. The board is pretty big so soldering parts is easy. The rotary switch and pots are all mounted on the board, which makes assembly easy, this is a good PCB.

There was no documentation on OSH Park for this, so I reverse engineered the board to match the parts in the schematic. Here is the schematic I used with part numbers that match the PCB.

zeke

Overall the board turned out pretty good. I used a socket for the dual op-amp. I threw a random 1458 in that was sitting in a pile of parts on my bench, and it fired up first test. This is supposed to use a JRC 4558. I think I have a couple of these squirrelled away, I’ll dig them out before I box things up. I might try some other op-amps also.

There are three sets of diodes. D2-4 are Ge, D5-6 are Si, and D7-8 are LED. I used some 1N34 for the Ge, and 1n914 for the Si, and random 3mm LEDs from the parts bin.

With 3P4T switch the circuit is only using one pole. I only soldered the pins used by that pole. This way if I made a mistake, it’s been known to happen, I had fewer pins to de-solder. With these switches there is a small ring with a tab under the nut. Be sure to set this for four positions.

To mount the pots, I would suggest making a box first, mounting everything in the box. This will position the pots at the correct height above the board compared to the switch. Then solder from the top of the board. I made some holes in a piece of cardboard, and mounted everything in that before soldering, since I didn’t have a box drilled yet.

I put everything on the test rig, and it fired up first! Good for me, and thanks to bmossma at OSH Park. It’s always inspiring when things work on the first attempt. The sound was pretty good, it didn’t sound like much with guitar, with bass, the effect started to make sense. I tested with my baritone guitar and it seemed to sound pretty good with that also. Definitely more of an overdrive, distortion, than a fuzz to my ears.





Osh Park PCBs

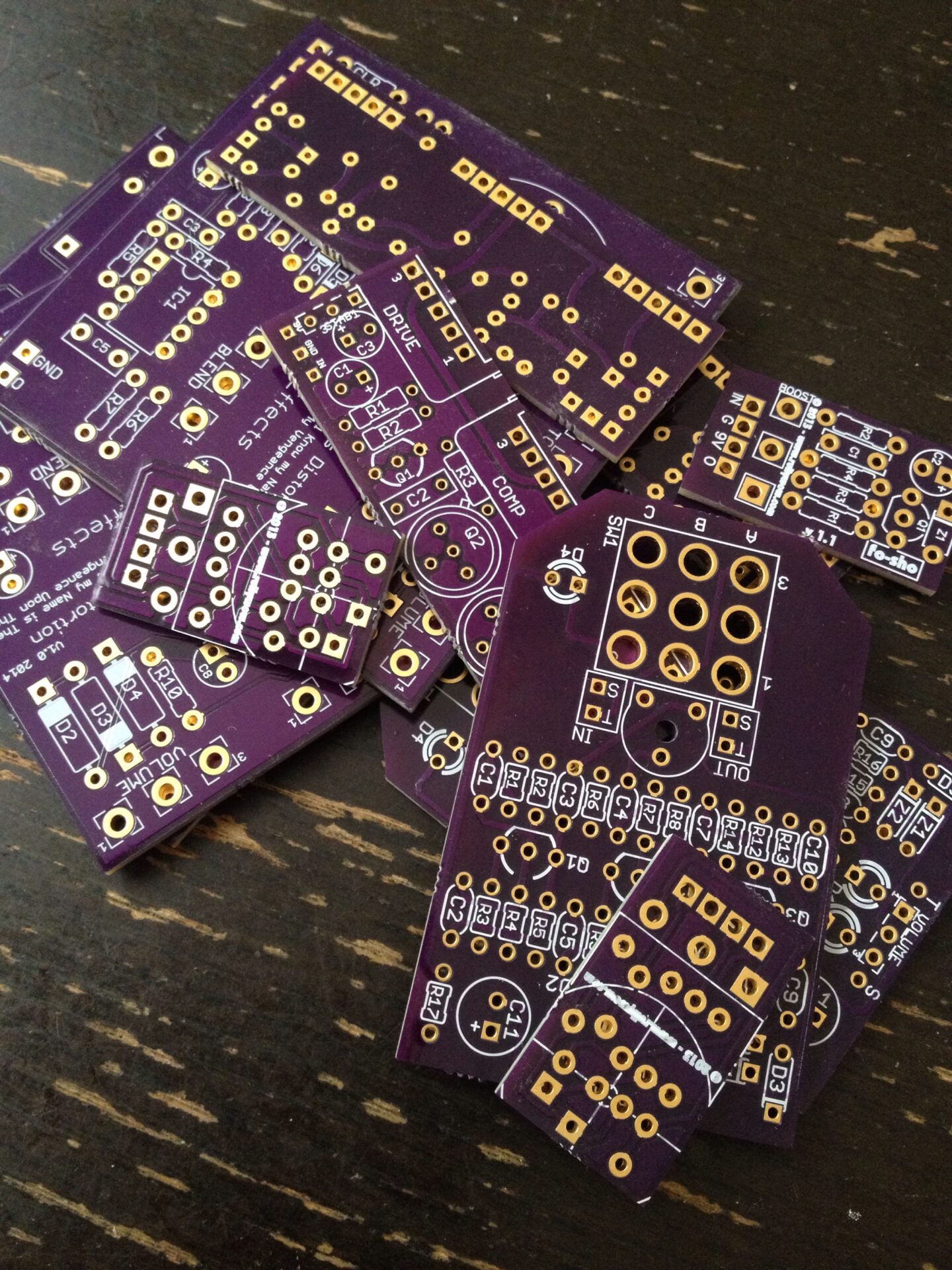

IMG_1158.JPGI just received this order from OSH Park. I order four boards. You are required to buy three copies of each board you order. The cost is $5 per square inch for 2 layer boards (with 3 copies of your board included in that price). Which is not bad, if the boards are small it’s a deal. For example, the SHO was $3.20 for three boards! The Fuzz Factory boards, were $7.75 for three, still a good deal. The Haunting Mids boards were just under $5 each, and the Zeke Bass Distortion was about $8.50 each.

Of course getting boards for designs that people upload with little info can be chancey. There should be more options on the site to comment, and mark boards as verified. Looks like not all projects are shared. User decide to share a project. Hopefully people make an order and test it before sharing.

The quality of the boards is great. A couple things I noticed. There is no solder mask. The pads are gold plated, which is nice. I find the solder mask easier to solder with. Look at the first image. You can see the backside of each of the four boards. Notice the board in the upper right. The pads are fairly small. I think, this is the default pad size in Eagle PCB. It’s not easy to solder, It’s not super difficult either. The two on the left have a more generous pad size. This size makes for a better soldering experience.

I’ll post again when build these boards…

For reference here are some links to the boards I ordered here:

https://oshpark.com/shared_projects/JtR27cHU

https://oshpark.com/shared_projects/xaBILSTV

https://oshpark.com/shared_projects/KE0blXBg

https://oshpark.com/shared_projects/nsJTeQK0
