I just received this order from OSH Park. I order four boards. You are required to buy three copies of each board you order. The cost is $5 per square inch for 2 layer boards (with 3 copies of your board included in that price). Which is not bad, if the boards are small it’s a deal. For example, the SHO was $3.20 for three boards! The Fuzz Factory boards, were $7.75 for three, still a good deal. The Haunting Mids boards were just under $5 each, and the Zeke Bass Distortion was about $8.50 each.
Of course getting boards for designs that people upload with little info can be chancey. There should be more options on the site to comment, and mark boards as verified. Looks like not all projects are shared. User decide to share a project. Hopefully people make an order and test it before sharing.

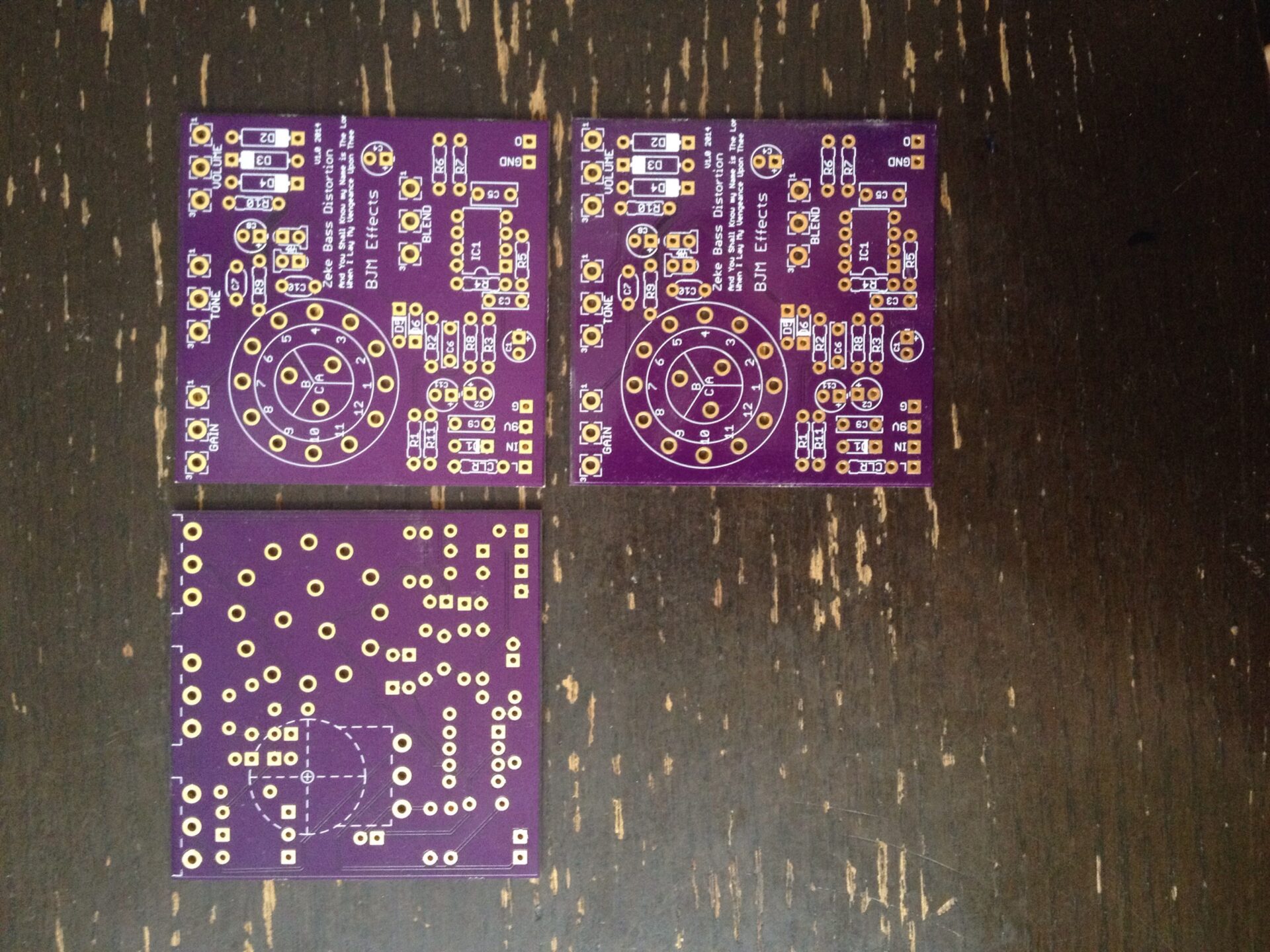

The quality of the boards is great. A couple things I noticed. There is no solder mask. The pads are gold plated, which is nice. I find the solder mask easier to solder with. Look at the first image. You can see the backside of each of the four boards. Notice the board in the upper right. The pads are fairly small. I think, this is the default pad size in Eagle PCB. It’s not easy to solder, It’s not super difficult either. The two on the left have a more generous pad size. This size makes for a better soldering experience.
I’ll post again when build these boards…
For reference here are some links to the boards I ordered here:
https://oshpark.com/shared_projects/JtR27cHU
https://oshpark.com/shared_projects/xaBILSTV
https://oshpark.com/shared_projects/KE0blXBg
https://oshpark.com/shared_projects/nsJTeQK0
