Old build pictures

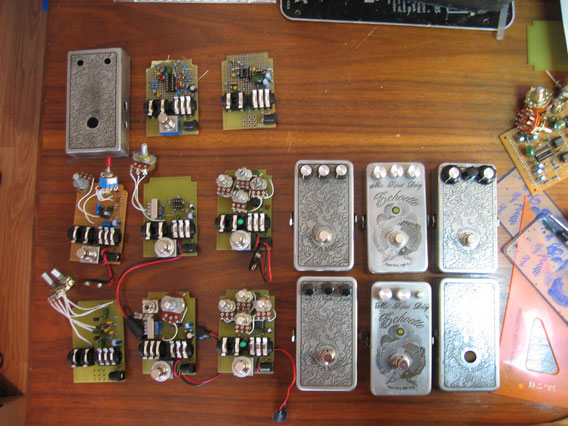

These were some builds I made about 10 ten years ago. These were all built with PCB that mounts the pots and jacks.

I etched some design on some of the boxes. There are a few images in there of this process.

IMG_3244_25 IMG_3244 IMG_3245_25 IMG_3245 IMG_3246_25 IMG_3246 IMG_3247_25 IMG_3247 IMG_3249_25 IMG_3249 IMG_3250_25 IMG_3250 IMG_3252_25 IMG_3252 IMG_3253_25 IMG_3253 IMG_3259 IMG_3260 IMG_3261 IMG_3262 IMG_3263 IMG_3264 IMG_3265 IMG_3266 IMG_3267 IMG_3268 IMG_3269 IMG_3270 IMG_3271 IMG_3273 IMG_3274 IMG_3275 IMG_3276 IMG_3277 IMG_3278 IMG_3279 IMG_3280 IMG_3281 IMG_3282 IMG_3283 IMG_3284 IMG_3286 IMG_3287 IMG_3441 IMG_3442 IMG_3443 IMG_3444 IMG_3447 IMG_3449


Swollen Pickle

This is Way Huge Swollen pickle clone I made. This is basically a Big Muff with using a 14 pin DIP that contains 4 transistors. The tone control also has a pronounced mid scoop compared to the original Big Muff.

Swollen Pickle guts

I etched this design on the box. The design is based on flames in Tibetan art. I named the box the Shiva Sonic. I figure as the god of destruction and rebirth, Shiva was an appropriate deity for the sound of the Big Muff.

Shiva Sonic Box

This is a layout for the Big Muff that would fit in a B sized box. It is set up to use a 14 pin DIP since I used a quad transistor array. The pins on this chip are arranged such that you you could use this layout with regular transistors inserted into a 14 pin DIP socket. If you look carefully you can see that I’ve marked the pins E, B and C

Swollen Pickle Layout
