Tone Bender Mk I

A friend recommend building the Tone Bender Mk I. I hadn’t tried this before. So I thought I’d give it a go. It also helped that I had heard the one Joe built over a ToneFiend. Sounds pretty good. Sort of a cross between the Fuzz Face and the Tone Bender Mk II. Really the best of both worlds.




Posted

in

by

Tags:

Comments

2 responses to “Tone Bender Mk I”

  1. Walker Avatar

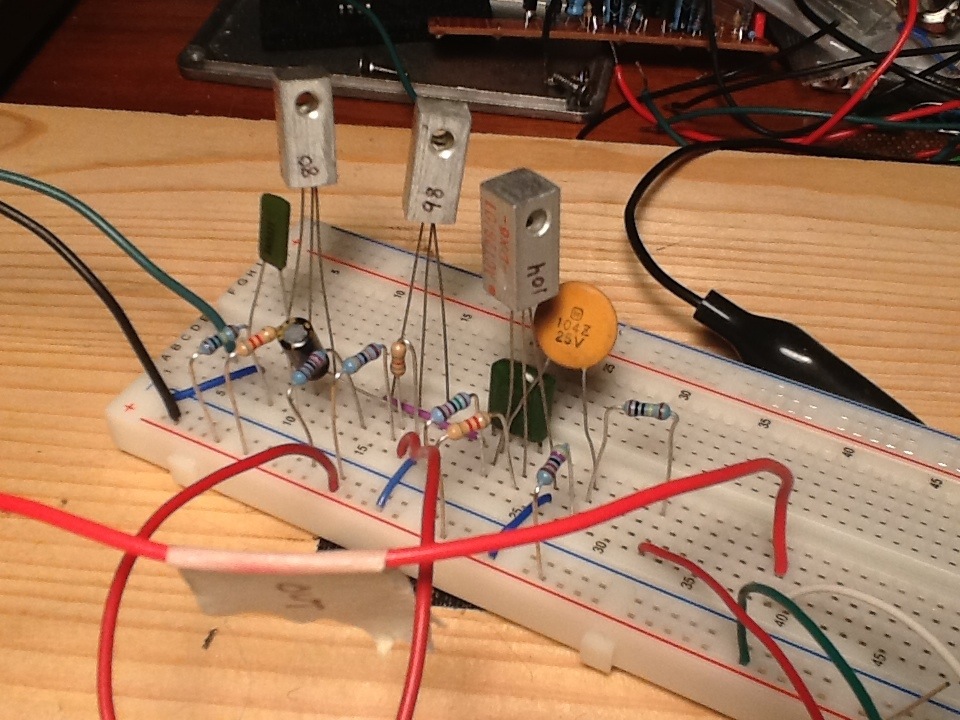

    What transistors are those? Is that hfe written on their sides? 🙂

    1. admin Avatar
      admin

      The transistors are AC128. I wrote the gain on the sides. I forget if I included the leakage in that number, suspect not.
