    I have been off the pedal building thing for a little while. I ran out of solder and had to take a break. But I just ordered a new spool!

  • Trem Shifter (Dead Astronaut)

    Trem Shifter (Dead Astronaut)

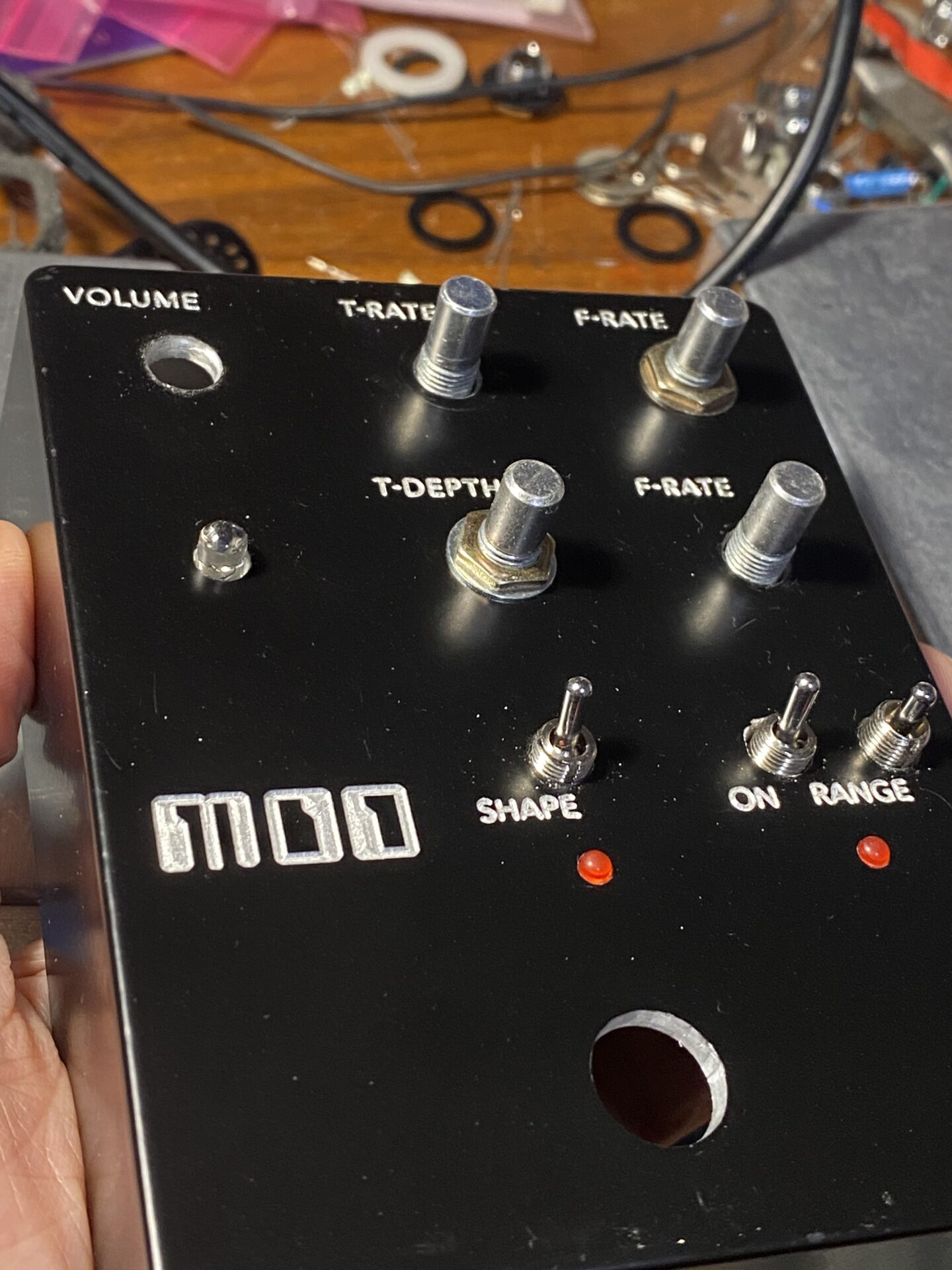

    This is a redesign of the Tremshifter by Dead Astronaut FX. It’s a tremolo and filter in one. There are two LFOs, one driving each the tremolo and the filter, with a rate and depth control for each. I built a couple of the Dead Astronaut boards and they worked well. I didn’t like the…

  • EuroPi

    EuroPi

    EuroPi is a Eurorack module based on the Pico Pi. Pico Pi is similar to the Arduino Nano but is based on the Raspberry Pi. A nice feature of the Pico PI is the price, they run about $4. The Arduino Nano tends to run about $15, but you can get knock offs for about…

  • Super Frequency

    Super Frequency

    This is my spin on Tim Escobedo’s Ugly Face. The original is a great DIY project anyone that hasn’t built it should give it a try. Super fun, unique sound, parts are easy to get, and it’s not a difficult built. This version makes a few changes to the original. The original uses an LM386…

  • Bigger Muff part 2

    Bigger Muff part 2

    Looking at the Bigger Muff. Still not happy with this, it doesn’t sound bad it’s just that the range of the controls is unsatisfying. There are plenty of usable sounds some but some of the settings are not useful. Here is the schematic: Here is a BOM: Partlist: BASS A1M 16MM GAIN A100k 16MM_DUALSUSTAIN A100k…

  • Peach Fuzz Clone

    Peach Fuzz Clone

    I have wanted to try the Frantone Peach Fuzz for a long time. The circuit uses one of my favorite chips the LM386. Not only does it use the 386 it uses two in series. Frantone is one of the original boutique companies, starting in 1994! They went dormant for a some years but have…

  • Peach Pit

    Peach Pit

    This is my take on the Frantone Peach Fuzz. Peach Fuzz is an op-amp buffer into a pair of LM386 in series, followed by a tone control similar to the Big Muff. It uses a dual op-amp but only one of the op-amps is used. Frantone was one of the early “boutique” small name builders.…

  • Debugging your Circuit

    Debugging your Circuit

    No matter how many pedals I build they don’t always work, at least not on the first try! Anything can go wrong. Debugging is a skill and an art, that is not hard to master. It’s impossible to name all of the possible things that can go wrong but, I can give you a list…

  • New Batch  of PCBs

    New Batch of PCBs

    New batch of PCBs. A couple updates and a couple new things. Here’s this list: I designed the boards in Eagle PCB (I swear I will learn KiCad one day!) and had them manufactured at PCBWay.com. I love this service, they always do great work and their web site is very easy to use! They…

  • Causality 6 by Frequency Central

    Causality 6 by Frequency Central

    This is 4/6 stage OTA based phase shifter by Rick Holt of Frequency Central fame. Here is a link to epic thread about this and a 4 stage design over at DIYStompboxes.com. Here’s my build, which is working but has a couple issues that need to be worked out before it’s ready for prime time.…

  • Bandcamp Playlists

    Bandcamp Playlists

    Bandcamp added playlists to the app! I love Bandcamp as a service. The one problem is the where and how you can play the music you’ve bought on the service. Playlists expand this in positive ways. Bandcamp has added features to Download an album. Go to the album page and tap Download Album. Queue an…

  • PedalPCB Terrarium

    PedalPCB Terrarium

    I put together a Terrarium from PedalPCB. Terrarium is a DSP platform that uses the Daisy Seed by Electrosmith. The Daisy Seed is like an Arduino Nano on steroids with audio super powers. You can read the link above for a full run down of its features. Figure it’s a platform where you could build…
