Tag Fuzz

Royal Jelly Buzz

Really just a Woolly Mammoth clone. I used some rubber stamps and Stazon ink to decorate the box. It’s sporting an obnoxiously bright green LED. The LED is probably the only thing I don’t like about this box. This is…

Ampeg Scrambler

Wired up this ampeg scrambler board I’ve had for a while. I’ve been trying to finish up all of the unfinished projects from the last few years. Fired up first test. I used MPSA13 transistors. I got the PCB from…

Some Fuzz Faces

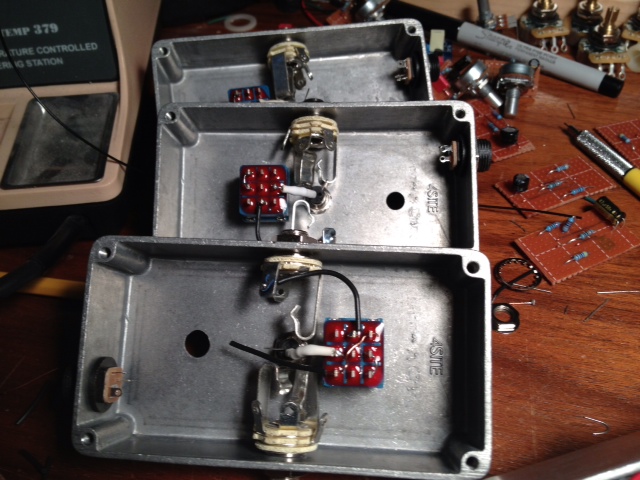

Finally getting back to building some Fuzz Face’s I started a while back. Here’s a picture, you can see the sockets for the transistors, two sets of three in a row, in the center. The input socket is two small…

Octave Fuzz Take 2

Here’s an updated version of the octave fuzz. Q1 and Q2 set up a basic NPN Fuzz Face type circuit. While Q3 acts as a phase splitter. Q4 and Q5 act as a frequency doubler each side being fed an…

Eyeball Fuzz

Here’s a Fuzz Face with custom 60s eyeball design in sharpie. This is a Si/Ge hybrid Fuzz face with a blend cap on the input.

Fuzzy Elephant

Here’s a clone of the Zvex Wooly Mammoth. Came out pretty good, sounds good too. I used strip board layout here: http://www.freestompboxes.org/viewtopic.php?f=7&t=4&start=40 It’s about halfway down the page. I modified it to move the parts closer together. My layout ended…

Fuzz Face for Joe part 2

Here’s Fuzz Face wired up and stuffed in a “B” sized box. This box is from 4Site electronics. Great finish and excellent screws much better than the Taiwanese boxes that are commonly available.

Fuzz Face For Joe

A few pictures of a Fuzz Face I made for a Joe. Turns out Joe hadn’t heard of the Fuzz Face. So I thought I make one for him. This one uses a Silicon 2n3906 for Q1 and a Germanium…

Silicon Tone Bender take 2

Whenever I build something I usually build two. The parts are cheap. If I make a mistake or the PCB doesn’t etch correctly I have a spare. If you build the first and it doesn’t work you can build the…

Silicon Tonebender

I built this Silicon Tonebender posted by mictester over on Freestompboxes. I used this layout. Everything worked the first try and it sounds good. I used BC109CN for transistors. These sounded good and have that metal can with a little…
